Kinetics-Ascentech is an innovative manufacturer of air-conditioning systems for mobile shelters operating in India. Our air-conditioning systems are remarkable for their simplicity, reliability and performance in harsh environments ranging from high humidity to extremely hot temperatures and dusty conditions.
Features
Energy efficiency
- Light weight & Minimum Foot Print on Shelter Wall
- Serviceability - Built-in diagnostics
- Digital monitoring control
- Qualified for harsh environmental conditions
- Micro Channel Condenser Coils

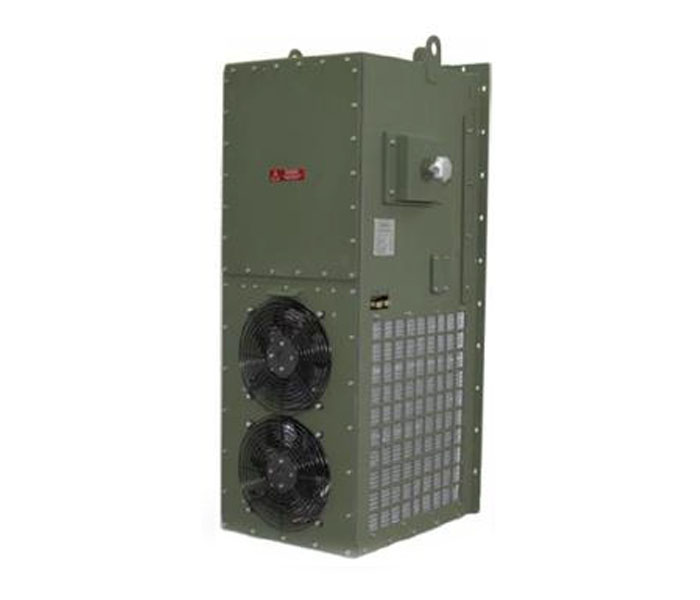

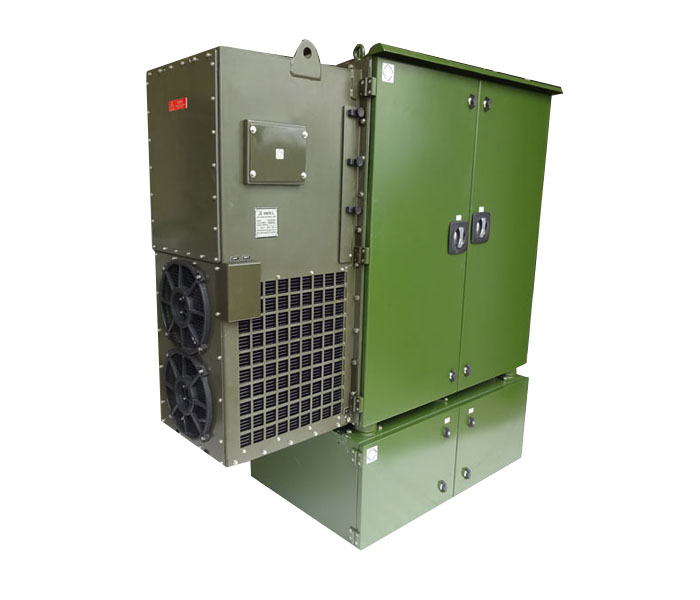

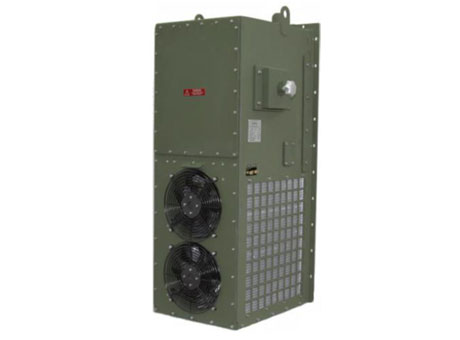

Kinetic HVAC Systems
- Product Line of a Vertically Mounted Heating, Ventilation, Air Conditioning ("HVAC") for shelters With Cooling Capacities from 18 to 43 kBtu/Hr.
- All products are digitally controlled, with various local and remote control options and optional communication with external control systems.
- Energy efficiency, Light weight & Min. Foot print on shelter wall
- Serviceability – built in diagnostics conditions, easy access, replaceable LRUs
- Qualified for harsh environment
- Meeting MIL-STD requirements

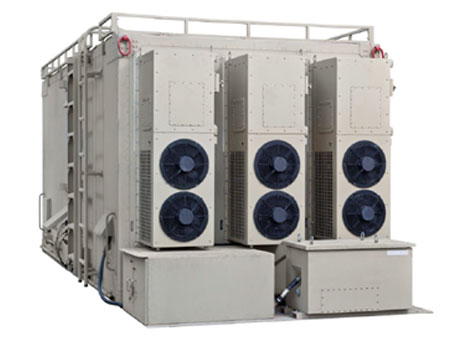

- Installation / logistic flexibility
Technicial Data Sheet
| HPV 18 | HPV 24 | HPV 36 | HPV 43 | ||
|---|---|---|---|---|---|
| Cooling Capacity at 35C | Btu/Hr kW |
18,000 5.3 |
24,000 7 |
36,000 10.5 |
43,000 12.6 |
| Cooling Capacity at 55C | Btu/Hr kW |
15500 4.5 |
17500 5.1 |
30000 8.8 |
34000 10 |
| Heating Capacity | Btu/Hr kW |
6900 2 |
10300 3 |
20500 6 |
20500 6 |
| Air Flow (@100 Pa EST) | CFM | 450 | 530 | 900 | 900 |
| Power Supply | V/Hz/Ph | 220/50 or 60/1 or 380/50/3 |
380/50/3 | ||
| Dimensions (H X W X D) | mm | 970 x 414 x 510 | 1122 x 408 x 510 | 1575 x 500 x 539 | |
| Weight | kg | 85 | 92 | 155 | 155 |
| Operation Range | C | -30 to +55 | |||
| Storage | C | -40 to +70 | |||
| Refrigerant | R134a | ||||
| Compressor | Hermetic Scroll | ||||
| Condenser | Micro channel condenser coils | ||||
| Optional Configurations | Front or side access connectors With/Without fresh air opening Soft starter for single phase models Hot Gas By Pass/Continuous Compressor Operation Dehumidification mode & RH measurement |
||||
Design & Test Capabilities
- Engineering Team of highly experienced engineers from all relevant disciplines covering mechanical, thermodynamics, electrical, electronics, software and system engineering.
- Extensive experience and proven performance in design and development of systems from concept generation to serial production.

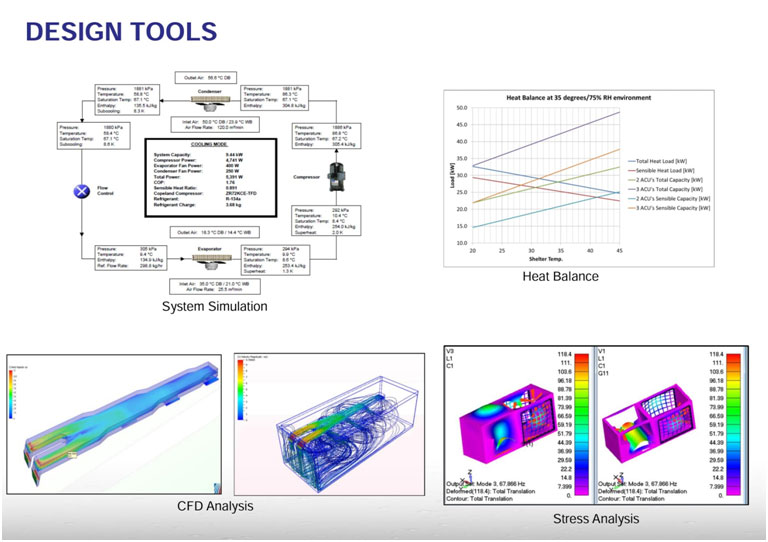

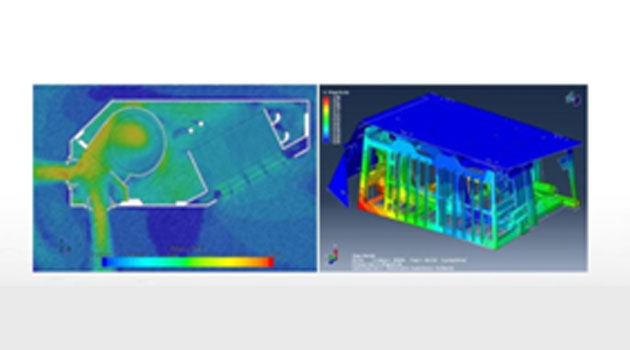

Simulation & Analysis
- Heat Balance & Thermodynamic Performance
- Computational Fluid Dynamics (CFD)
- Static and Dynamic FE Analysis
Testing Facilities
- Climatic Chambers
- Temperature & Humidity Ovens
- Environment Test

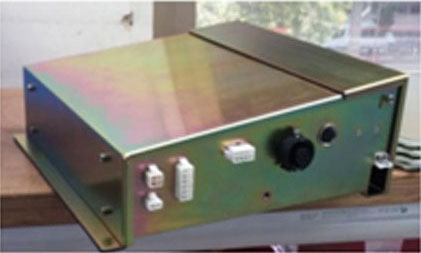

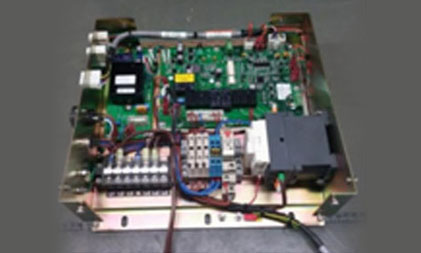

Digital Control Features
Central Remote Control Options
- Ethernet
- RS-485 Communication Protocol
- Dry Contacts (On/Off, Alarm)
Built-In System Protections –
- Minimum On/Off times, Defrost, Over Pressure, Low Pressure Cut off, Compressor over Heating, Under/Over Voltage, Phase sequence detection.
Pecial Operation Modes
- High Loads Start Up
- Liduid Injection Control (in Hot Gas By Pass Systems)
- De-Humidification (optional)
- Technician Mode
- Refrigerant Charge Test (option)
Digital Operation Features

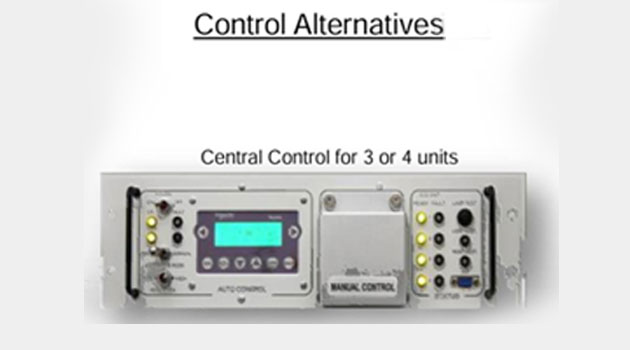

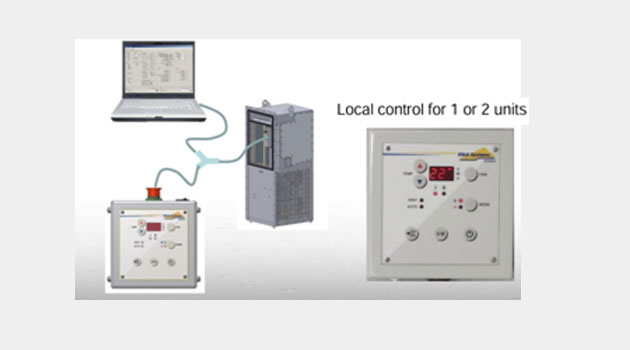

Central Control for Up to 4 Units
- Time Sharing
- Back-Up
- Capacity Boosting at High/Low Temperatures
Display All Unit Parameters (temperatures/pressure/voltage..)
Manual Back Up Switch
Technician SW

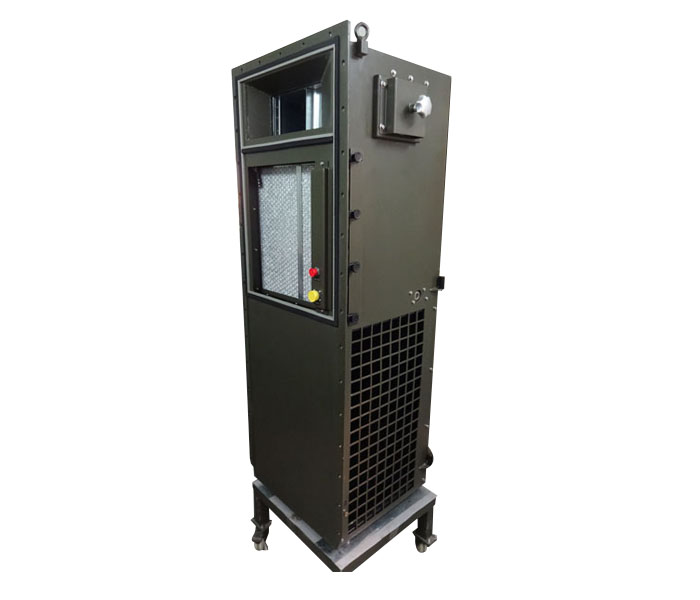

Air conditioning Units
Air conditioner will be MIL grade and rugged to withstand shocks during transit to maintain a 22℃ + 5℃ or ambient temperature.
Psychrometric Test chamber
A dedicated Psychrometric Test chamber installed at Ascentech factory, Hyderabad to witness the performance of Air-Conditioning at different temperatures.
Specifications
Type
Vertical slip On
Grade
MIL/Defense Grade
Standard features required
- EMI/RFI protected gaskets.
- Compatibility for remote control operation
Protections
- Compressor high pressure cut off
- Compressor low pressure cut off
- Overload protection for motors
- Time delay for compressor operation
- Overheat protection for heaters
- Freezing Protector
- Protection against Refrigerant Freezing
- Soft starter to reduce starting connector
Remote control Unit with the following features
- ON/OFF
- Heat
- Cool
- Ventilation/Fan (with speed selector)
- Temperature Control with Temperature Setting
- Digital type, shelter wall mountable
Noise level
Supply & Integration of Data Logger and will fitted inside the cool dolly unit
- Max. 65 dB (A) At 3 meters without supply Air duct.
- Max. 60 dB (A) At 1 meter with supply Air duct & honey comb filter.
Outside Shelter
- Max. 75 dB (A) At 1 meter distance.
Material of structure
Aluminum Alloy
Connector
MIL graded
Refrigerant
R134a
Environmental specifications (as per JSS 55555, classL3 & MIL standard 810)
- Operating temperature : -30℃ to +55℃
- Storage temp. (Survival) : -40℃ to +60℃ with 95% RH
EMI/EMC
As per MIL standard 461.
Mounting
To be mounted to shelter wall directly.
Manuals
Technical, Maintenance & User manuals
Accessories
Essential for operation and maintenance
